TM500 O-RU Tester
A NITRO Wireless Product
The O-RU is one of the disaggregated O-RAN network elements designed to perform the lower physical layer and RF functions. It interfaces with the O-RAN distributed unit (O-DU) over what is known as the standardized O-RAN fronthaul interface. The O-RU performs its operations in real-time, dealing with high sampling rate IQ data. Its smooth running is essential to the performance of the overall system.
O-RU Test Challenges
Validating the timing and synchronization between an emulated O-DU and O-RU. This is important as the timing ensures that all aspects of the management, control and user planes are synchronized and eliminates the risk of latencies or lost/dropped packets.
Ensuring inter-operation of the O-DU with different vendor O-RUs, which are all supposed to operate according to the O-RAN standard. This sounds easy and is one of the key goals with Open-RAN architecture, but in practice, it comes with challenges. Different vendor O-RUs may have different delay profiles, different software implementations and a different performance, meaning they may not plug, play and operate correctly.
The latency, maximum throughput and handling of certain features, such as beamforming, may not produce the same performance between two different vendors. Due to the flexibility that the O-RAN standard encompasses, testing must address the complexity of using different vendor combinations while expecting consistent results.
Conformance testing is vital but it does not ensure that the O-RU can deliver the expected performance when 3GPP features are implemented before or after it has been integrated within the network.
O-RAN provides flexibility. It also means that the complexity in testing can increase owing to mixing O-RAN components from different vendors.
Simplifying the evaluation of the O-RU
The TM500 O-RU Tester goes beyond conformance specifications and provides the simplicity of evaluating the O-RU to enhance productivity for the customer and also provides advanced test methods that reduce the risk of the O-RU underperforming from an E2E point of view.
Test Journey
By following the VIAVI Test Journey and the outlined test progression, you can speed up your product's time to market.
- Reduce or remove potential issues when integrating with other O-RAN network components, performance and efficiency in testing.
- Avoid limitations in the performance of the O-RU. For example: achieving maximum throughput under different sub-carrier spacings, bandwidths and carrier aggregation scenarios.
- Ensure that not only the O-RAN fronthaul semantics and syntax work, but 3GPP U-plane data can successfully be decoded before any form of E2E testing where issues are more difficult to diagnose due to the O-RAN vendor diversity.
O-RU conformance, interoperability, and performance
In partnership with Rohde & Schwarz
The TM500 O-RU Tester is designed with two versatile test setup modes to cater to a variety of testing requirements and budget constraints. Both setups offer real-time generation of the Open RAN C/U-plane messaging for the IQ data stream; flexibility to test a wide range of frequencies and bandwidths; and customizability to allow users to easily configure and modify test parameters.

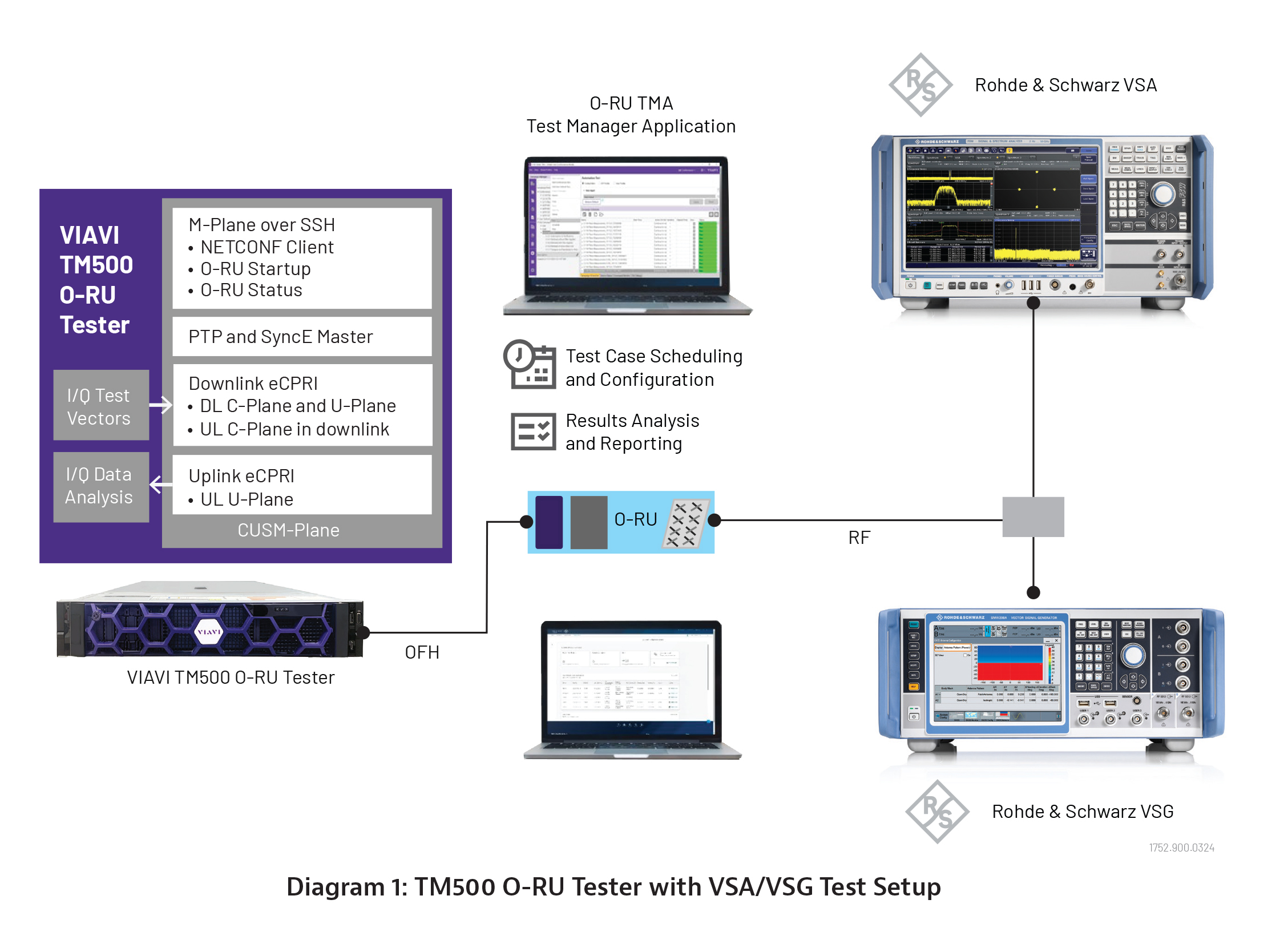

TM500 O-RU Tester with VSA/VSG Test Setup
- Use Case: Primarily used for conformance and certification testing. Ensures that the O-RU meets rigorous conformance and certification requirements, facilitating seamless integration into broader network deployments.
- High Precision: Utilizes a standalone Vector Signal Analyzer (VSA) and Vector Signal Generator (VSG) for broad capability signal analysis and generation, ideal for detailed performance assessment.
- Flexibility: Offers the ability to test a wide range of frequencies and bandwidths, supporting diverse O-RU configurations and compliance testing needs.
- Customizability: Adaptable to a variety of test scenarios, allowing users to configure and modify test parameters according to specific network demands.
TM500 O-RU Tester with PVT360A Test Setup
- Use Case: Designed for early-stage development where numerous engineers need to work in parallel, performing functional and system-level testing. Accelerates the R&D process by enabling comprehensive testing across multiple parameters, ensuring robust development from the ground up.
- Integrated Solution: Incorporates the PVT360A, a compact, single-box VSA/VSG instrument that enhances test efficiency and reduces operational complexity.
- High Throughput: Designed for rapid testing with capabilities for simultaneous multi-port testing, reducing test times significantly.
- Scalability: Offers scalable options from basic single-generator setups to advanced configurations with multiple generators and analysers.
Why VIAVI and R&S:
- Solution designed for scalability
- Streamlined single control point for simplified usage
- Singular support ownership post-sales through VIAVI
- Compatible with TM500 for performance testing
- Leverage VIAVI RANtoCore market dominance, rooted in the industry-leading TM500
- Use R&S top-tier RF capabilities and market leadership
Direct Performance Testing (DPT)
In addition to conformance testing, our approach goes beyond O-RAN standards to test at the 3GPP level. We call this Direct Performance Testing (DPT), where the O-RU is tested with an emulated O-DU over the 3GPP stack. This method offers numerous advantages, facilitating a much smoother integration with a real O-DU before E2E testing.
Benefits of Direct Performance Testing (DPT)
- Achieve optimal performance for each O-RAN network element before E2E testing.
- Improve efficiency before integration with O-DU and E2E performance testing by eliminating issues that E2E testing might conceal.
- Reduce the blame game between vendors' components.
- Enhance the reputation of vendor network components, as O-RU conformance testing alone does not ensure compatibility with the 3GPP 5G stack.
End-to-End Testing
O-RUs, O-DUs, and O-CUs are tested alongside a real or emulated core network to achieve optimal performance across all network components. This type of testing is typically conducted by a System Integrator or an OTIC laboratory.
Watch a demonstration of end-to-end testing here:
Capacity Testing
Capacity testing involves scaling the number of User Equipment (UE) devices with carriers to emulate a real deployment. This realistic test ensures the best Quality of Service (QoS) for each user under various mobility and fading conditions.
O-RAN Alliance - Virtual Exhibition
Why the TM500 O-RU Tester
- Simplifies the testing of O-RUs throughout the entire test lifecycle.
- Accelerates time to market by resolving issues earlier in development.
- Works seamlessly with the industry-standard TM500 and TeraVM Core Emulator.
- Reuses a derivative of the TM500 and its software, reducing integration risks, providing quality and stability, and ensuring interoperability and performance testing.
- Offers a single point of control for running, configuring, and enhancing productivity.
- Utilizes a mature and proven O-RAN CUSM interface for smoother interoperation with different vendor O-RUs while maintaining peak performance.
- Ensures consistent and repeatable O-RAN tests and results with TM500 software.
Key Features
- NETCONF Client to support Start-Up and get/edit configuration of M-plane attributes in the O-RU under test
- O-RAN C/U-plane functionality to exchange I/Q data over Lower Layer Split 7-2x interface
- Real time C/U-plane eCPRI packets generation
- Embedded protocol analyzer for OFH traffic analysis
- C/U-plane messaging support with eCPRI over Ethernet
- PTP/SyncE Grandmaster + PTP Client for Synchronization with external PTP Master
- OFH interface connectivity monitoring
- Wide range of synchronization topologies
- Multiple options for stimulus waveform generation
Applications
- Conformance Testing
- Direct Performance Testing
- End-to-end Testing
- Capacity Testing
- O-RAN Fronthaul Testing
- 5G Physical Layer Testing
-
